A lightweight adjustable support component in the aluminum formwork system, used for short walls, columns, wall ends, and door piers to correct verticality and resist lateral pressure.

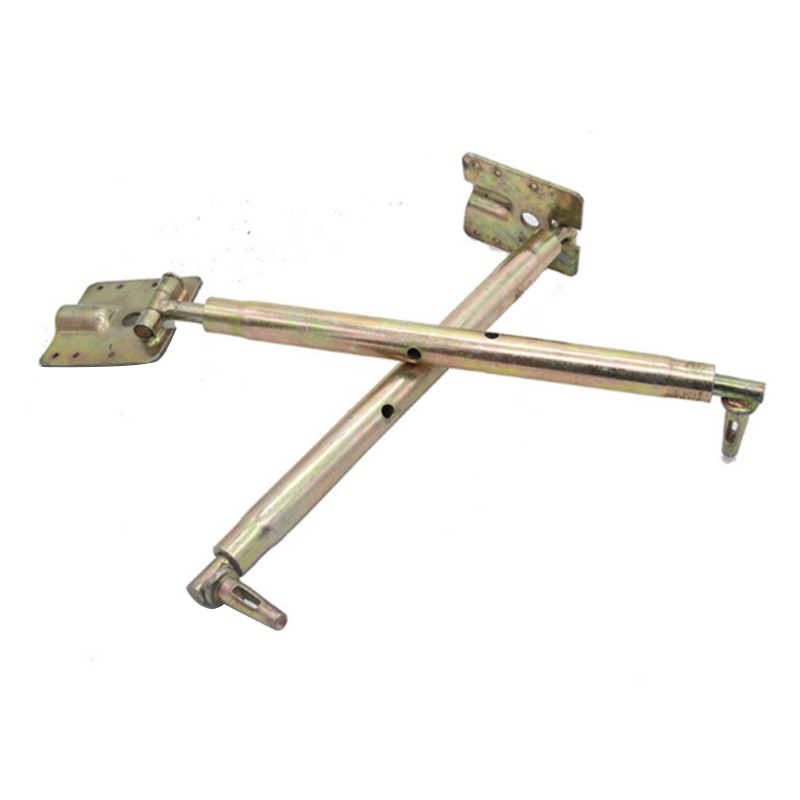

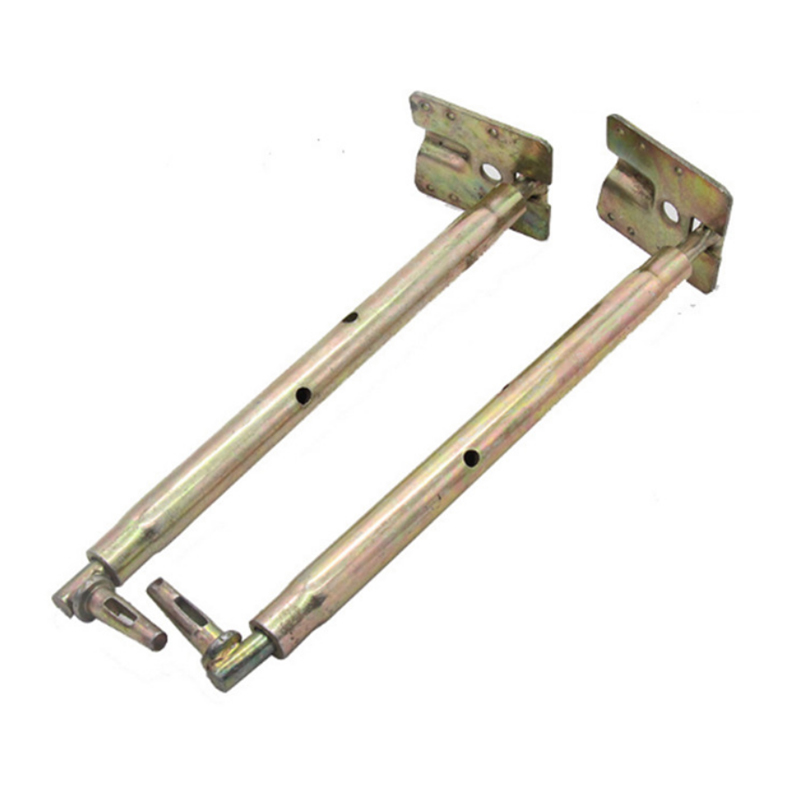

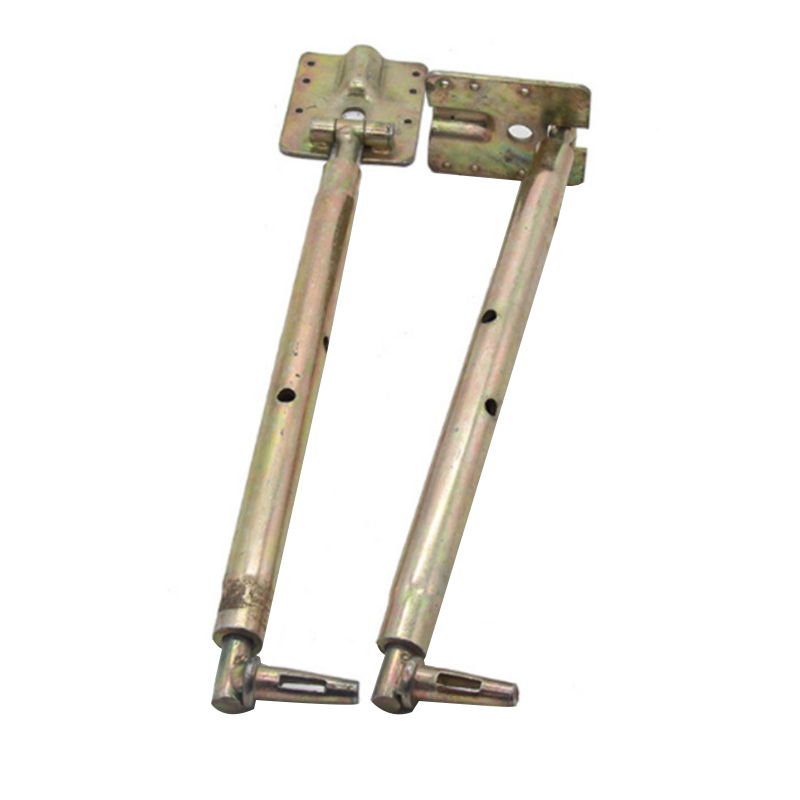

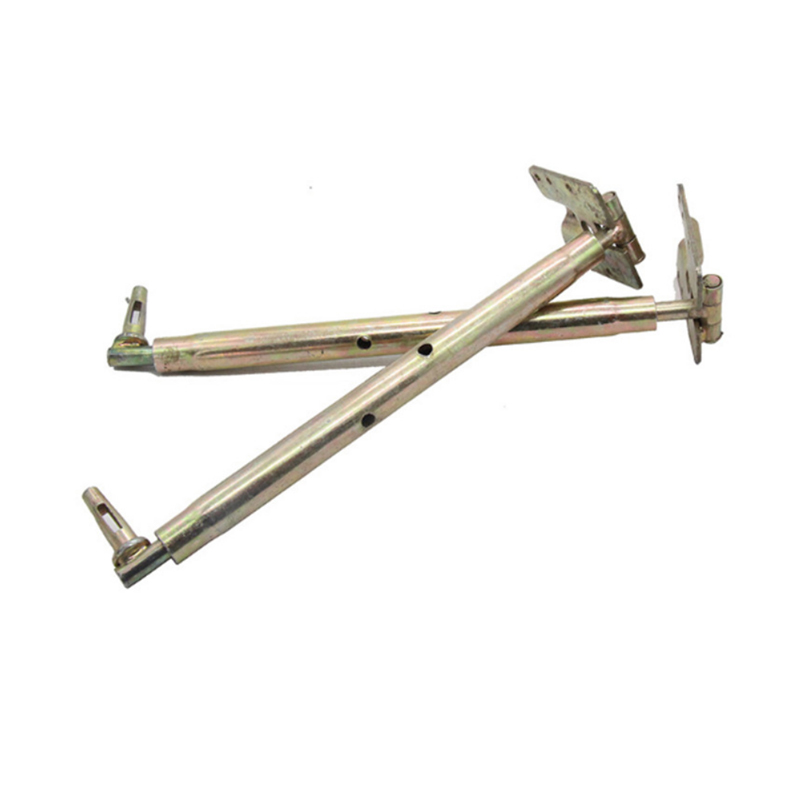

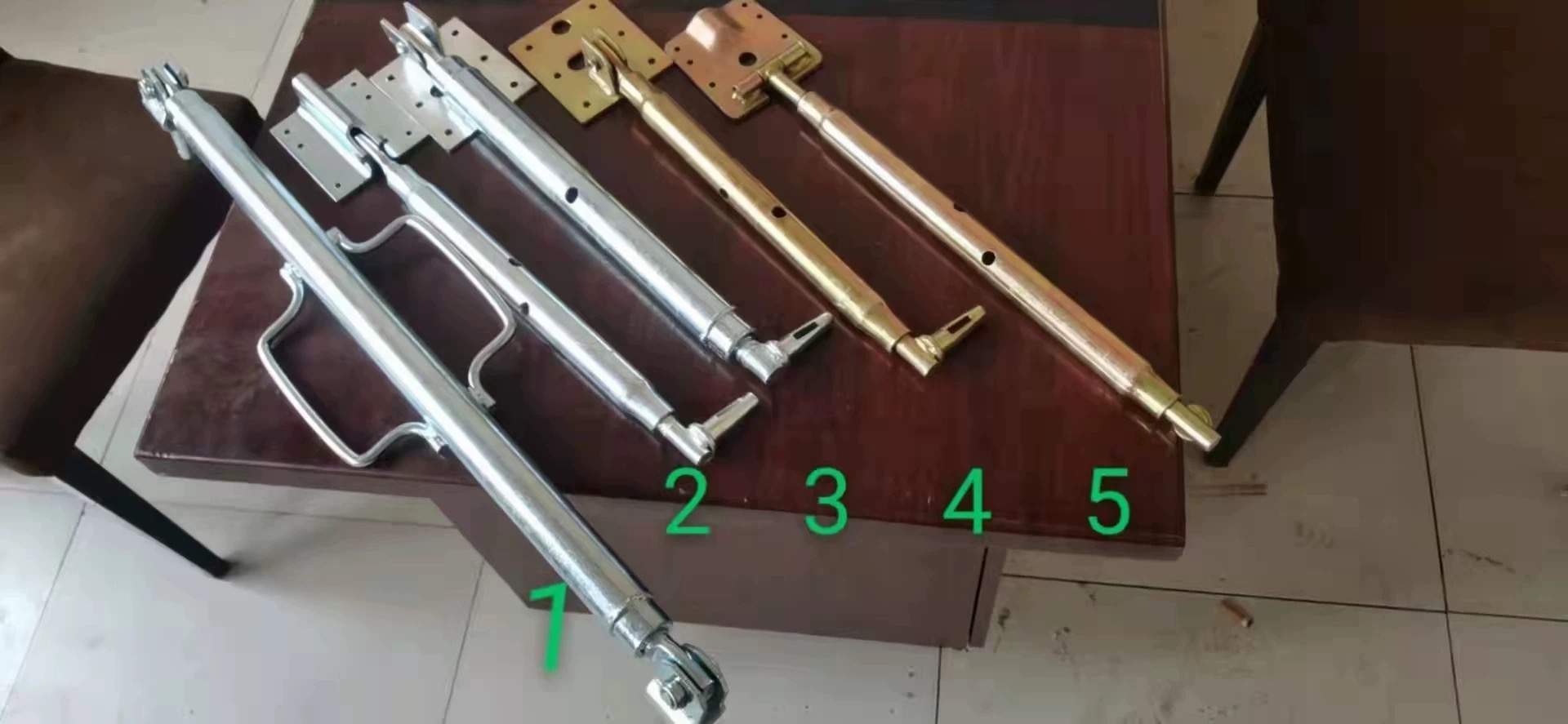

The small diagonal brace for aluminum formwork is a lightweight adjustable support component used for short walls, columns, wall ends, and door piers. Its core function is to precisely correct verticality, resist lateral pressure, and prevent formwork bulging. It is specially designed for tie-rod type aluminum formwork.
Design note: Angled push-pull struts with swivel end plates accommodate vertical and horizontal loads. The two ends are fixed on wall forms at 90 degrees, and the rotatable handle adjusts and fixes the wall formwork angle.
VERTICALITY CORRECTION
Corrects wall formwork verticality, resists lateral pressure, and prevents bulging during concrete placement.
QUICK ADJUSTMENT
The telescopic design allows working length adjustments in seconds; required adjustments take only a few turns.
Due to high strength, inclined panel supports are used in the construction of houses and high-rise buildings. The available length of the push-pull strut is 400 to 600 mm.
All inclined panel brackets can be assembled on site, making on-site operation very simple. Various surface treatments such as zinc sheet and hot-dip galvanizing are available.
✓ Lightweight support
Easy handling in the formwork system.
✓ Quick adjustment
Telescopic design adjusts in seconds.
✓ Pin / hook connection
Upper end to formwork or back brace.
✓ Floor fixing
Base with cement nail or expansion bolt.
01 / SHORT WALLS
Support and align short wall formwork panels.
02 / COLUMNS
Adjustable bracing for column formwork.
03 / WALL ENDS
Bracing within 500 mm of wall ends as required.
04 / DOOR PIERS
Adjustable support for door pier formwork.
05 / HOUSE CONSTRUCTION
High-strength bracing in residential building works.
06 / HIGH-RISE BUILDINGS
Reliable formwork support for high-rise construction.
| Material Type | Characteristics | Typical Finish |
|---|---|---|
| Q235B Steel Pipe | Carbon steel pipe with good strength for formwork support. | Zinc / HDG |
| Zinc-Coated Steel | Zinc sheet surface treatment for general site conditions. | Zinc coating |
| Galvanized Steel | Hot-dip galvanized option for improved corrosion protection. | Hot-dip galvanizing |
Zinc Coating
Standard zinc surface treatment for general site conditions.
Hot-Dip Galvanizing
Thick zinc protection for outdoor and wet site environments.
Powder Coating
Durable painted option available on request.
Plain / Oiled
Degreased and oiled option for fabrication-stage use.
Custom Coating
Colour and coating systems per project specification.

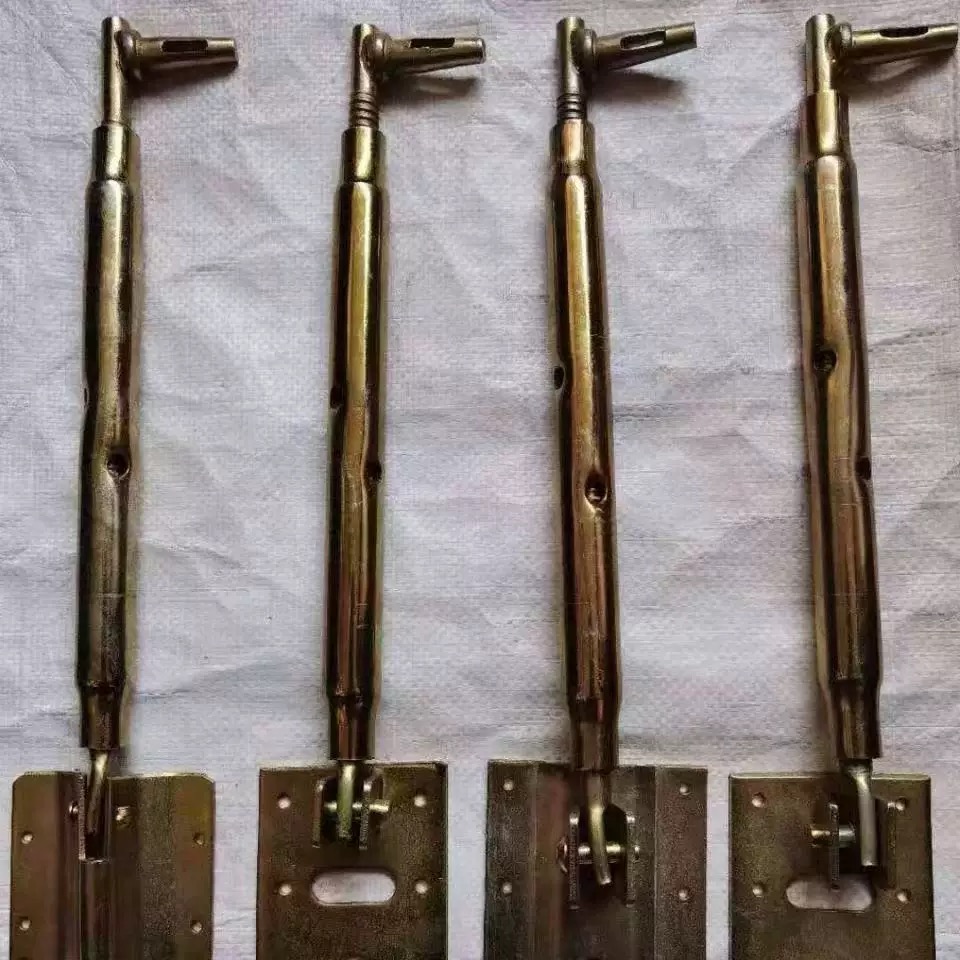

Adjustable Push-Pull Strut
Angled push-pull strut with telescopic adjustment for quick setting.
Swivel End Plates
Sloping panel brackets accommodate vertical and horizontal loads.

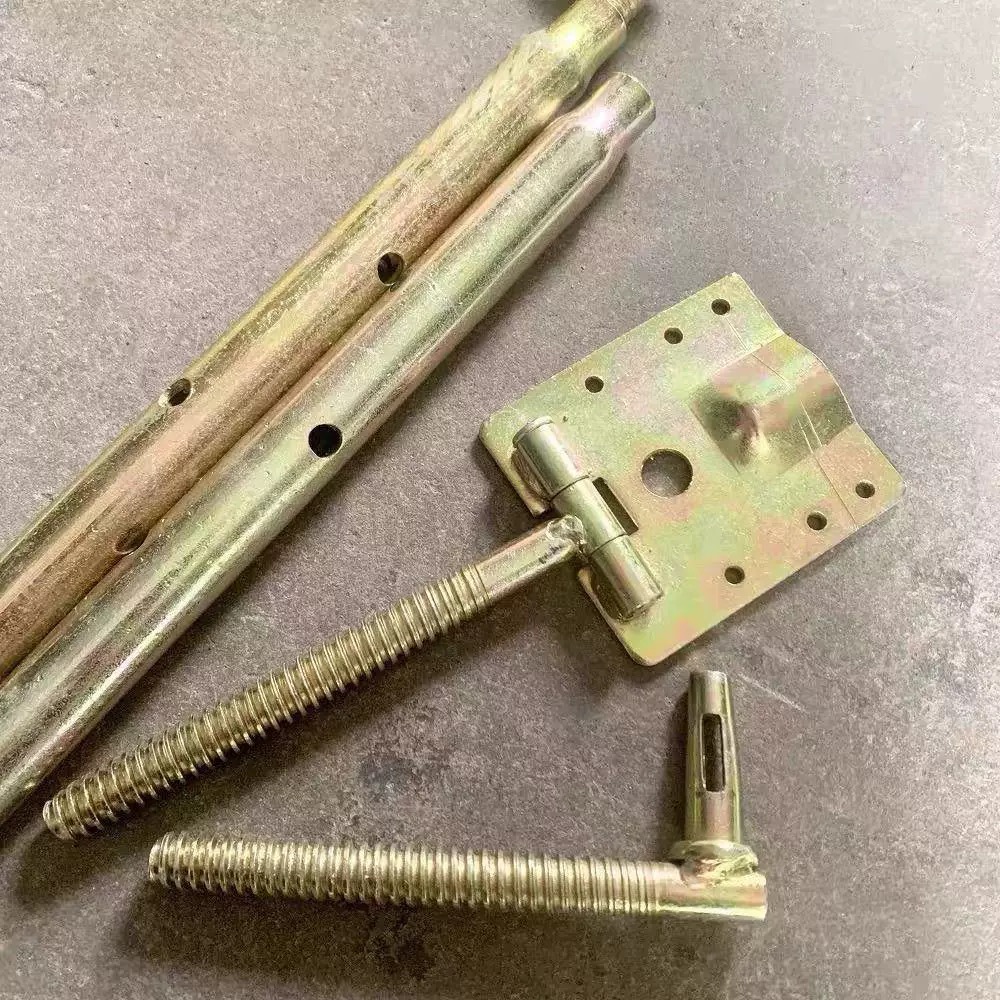

Pin / Hook Bolt
Upper end connects to the formwork or back brace.
Base Fixing
Lower end fixed to the floor with a base plus cement nail or expansion bolt.
Installation note: Spacing should be no more than 1200 to 1500 mm, and bracing must be set within 500 mm of the wall end.

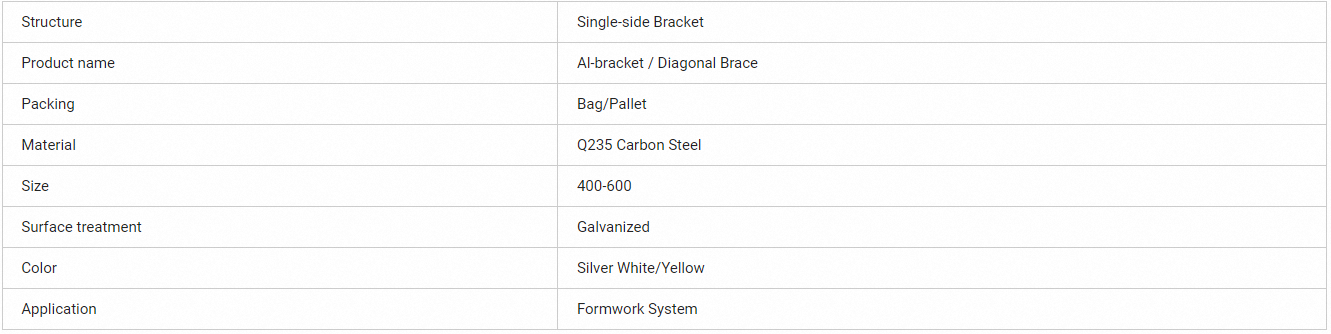

Φ32 x 3.0 mmΦ30 x 3.0 mmQ235B Steel PipeLength 500 - 800 mmZinc / HDGTie-Rod System
| Item | Requirement |
|---|---|
| Upper Connection | Pin or hook bolt to the formwork or back brace. |
| Lower Connection | Base fixed to the floor with cement nail or expansion bolt. |
| Adjustable Length | 500 - 800 mm; push-pull strut available length 400 - 600 mm. |
| Spacing | No more than 1200 - 1500 mm; within 500 mm of the wall end it must be set. |
Specifications are based on commonly used parameters. Please provide your formwork drawings for exact sizing.
