Product Details

Product Specifications

• Product Name: Seismic Support Bracket Accessories / Seismic Bracing Fittings

• Material: Q235B Carbon Steel, 304 / 316 Stainless Steel

• Surface Treatment: Electro-galvanized, Hot-Dip Galvanized (HDG), Dacromet

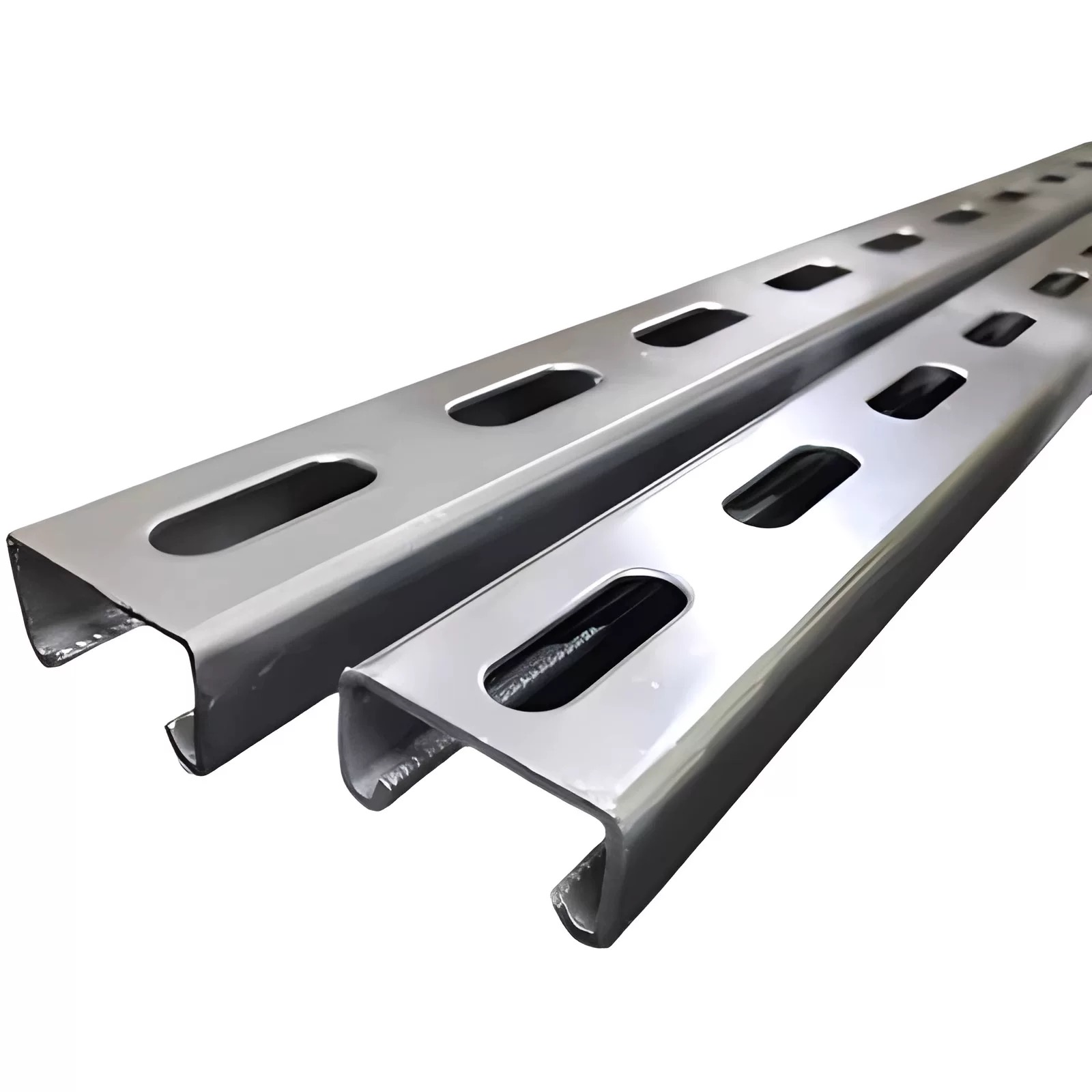

• Applicable System: Standard C-channel seismic bracing system

• Installation Method: Modular bolt assembly, no on-site welding

• Applicable Pipeline: Fire pipe, water supply & drainage pipe, ventilation duct, cable tray, HVAC

• Processing Technology: CNC punching, laser cutting, precision bending, deburring

• Performance Standard: Complies with international building seismic safety standards

• Customization: Standard sizes in stock, OEM & drawing customization available

• Application Scene: Commercial building, hospital, school, subway, pipe gallery, factory, data center

Seismic Brackets Accessories – Product Description

Seismic Brackets Accessories

I. Basic Product Info

Official Name: Seismic Support FittingsFunction: Matching connecting parts for building MEP seismic bracing systems, to fix fire pipes, water pipes, ventilation ducts, cable trays and HVAC pipelines against earthquakes.

• Specifications: Standard sizes in stock, OEM drawing customization available

• Raw Materials

1. Carbon steel Q235B: Cost-effective for general projects

2. Stainless steel 304/316: For coastal & underground high-corrosion environments

• Surface TreatmentsElectro-galvanizing: Indoor dry useHot-dip galvanizing (HDG): Outdoor & damp underground worksDacromet: High salt-spray municipal projects, zero hydrogen embrittlement

• Unit: PCS; Custom sizes & weights supported

II. Product Classification

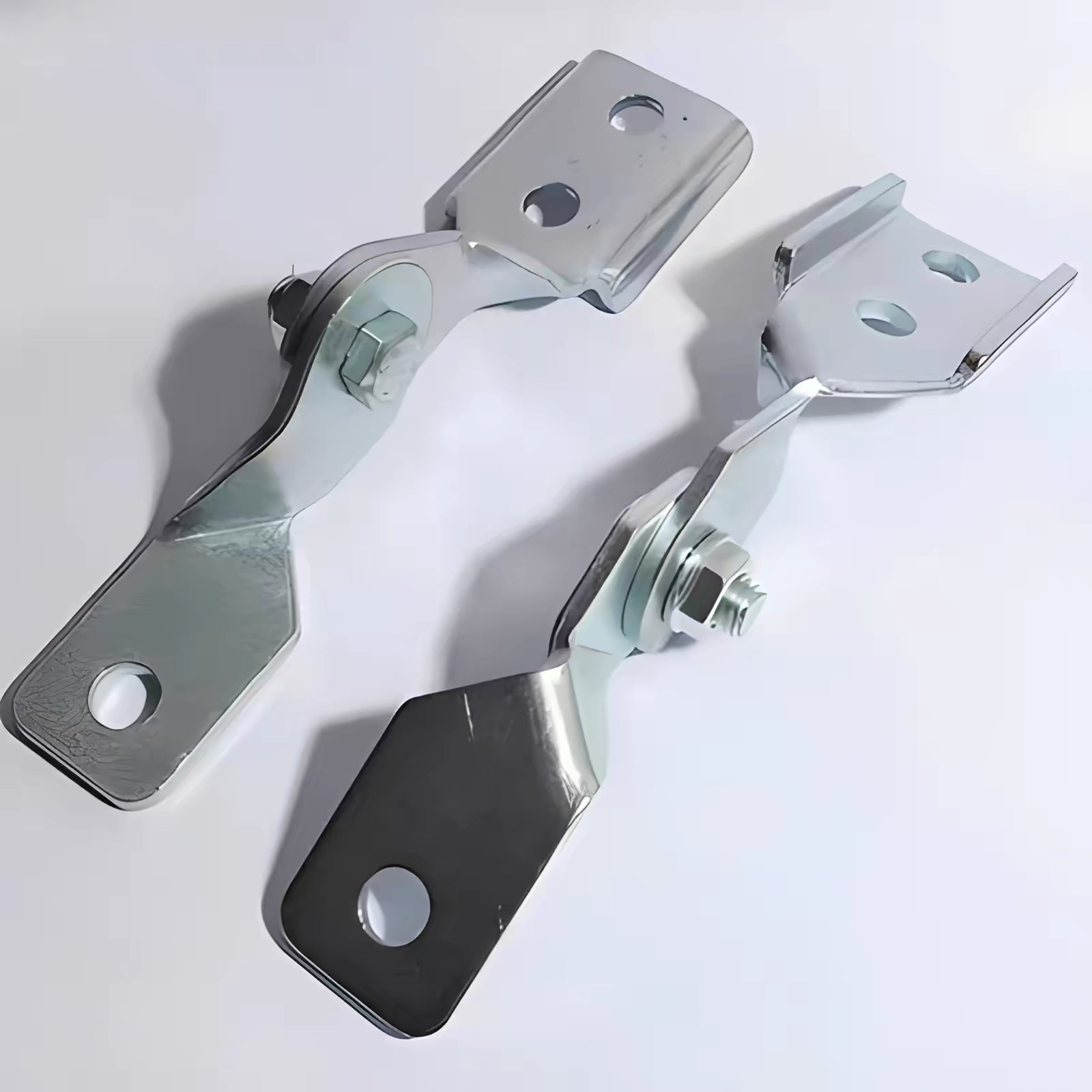

1. Connection Fittings: Angle brackets, L/U connectors, adjustable seismic hingesCore parts for lateral & longitudinal diagonal bracing, absorb seismic displacement.

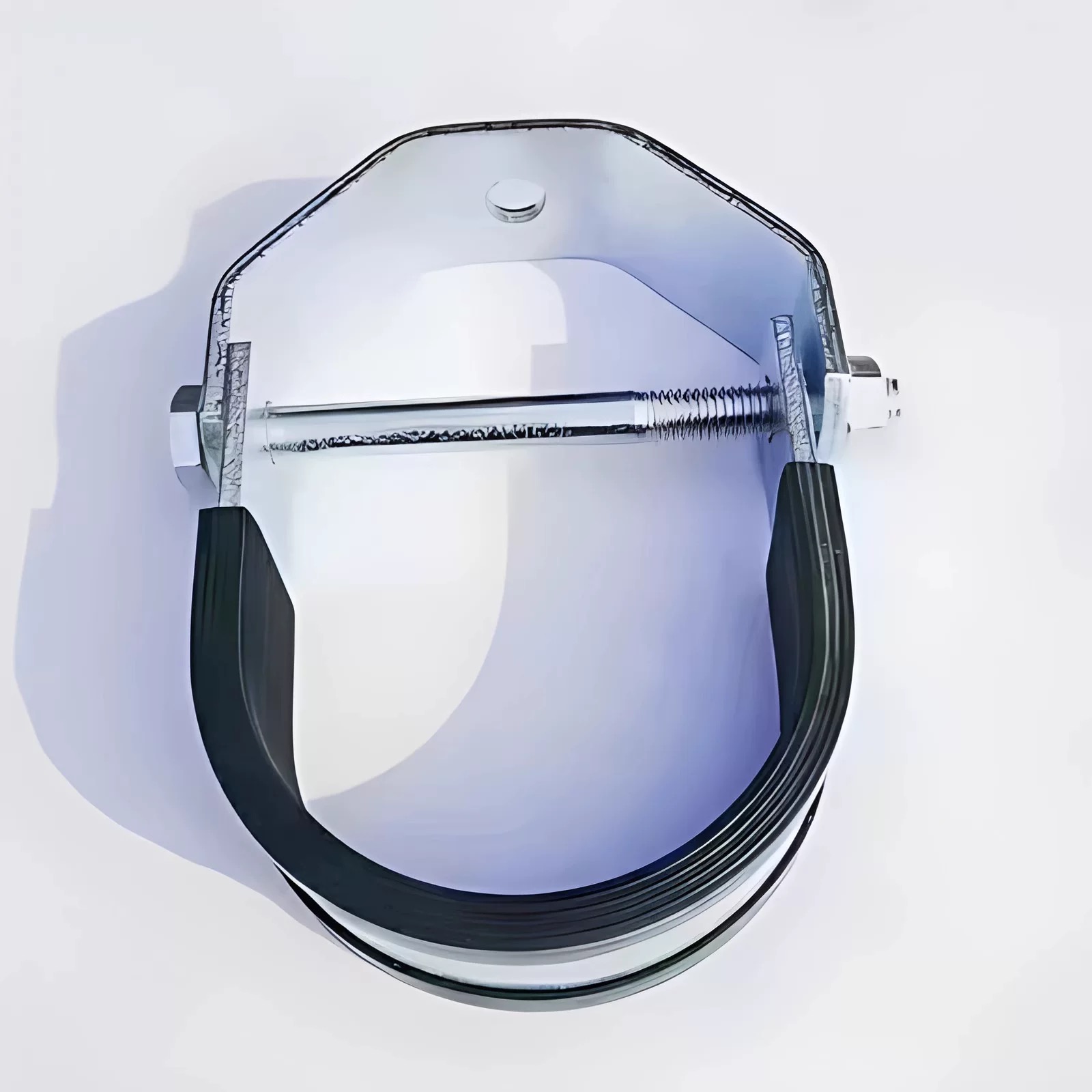

2. Pipe Clamps: EPDM lined anti-vibration pipe clips, O-ring pipe clampsReduce pipeline vibration & abrasion for fire/drainage steel pipes.

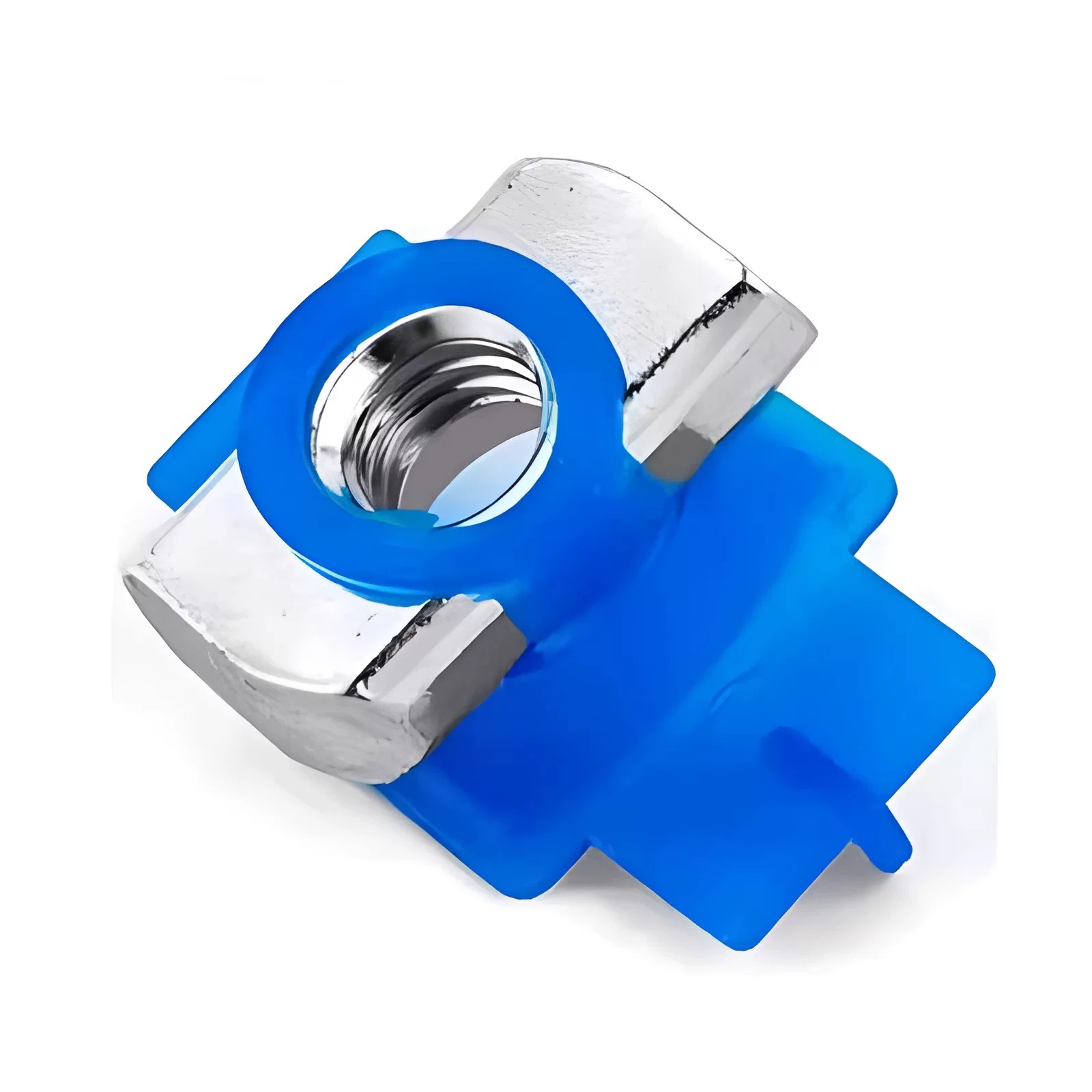

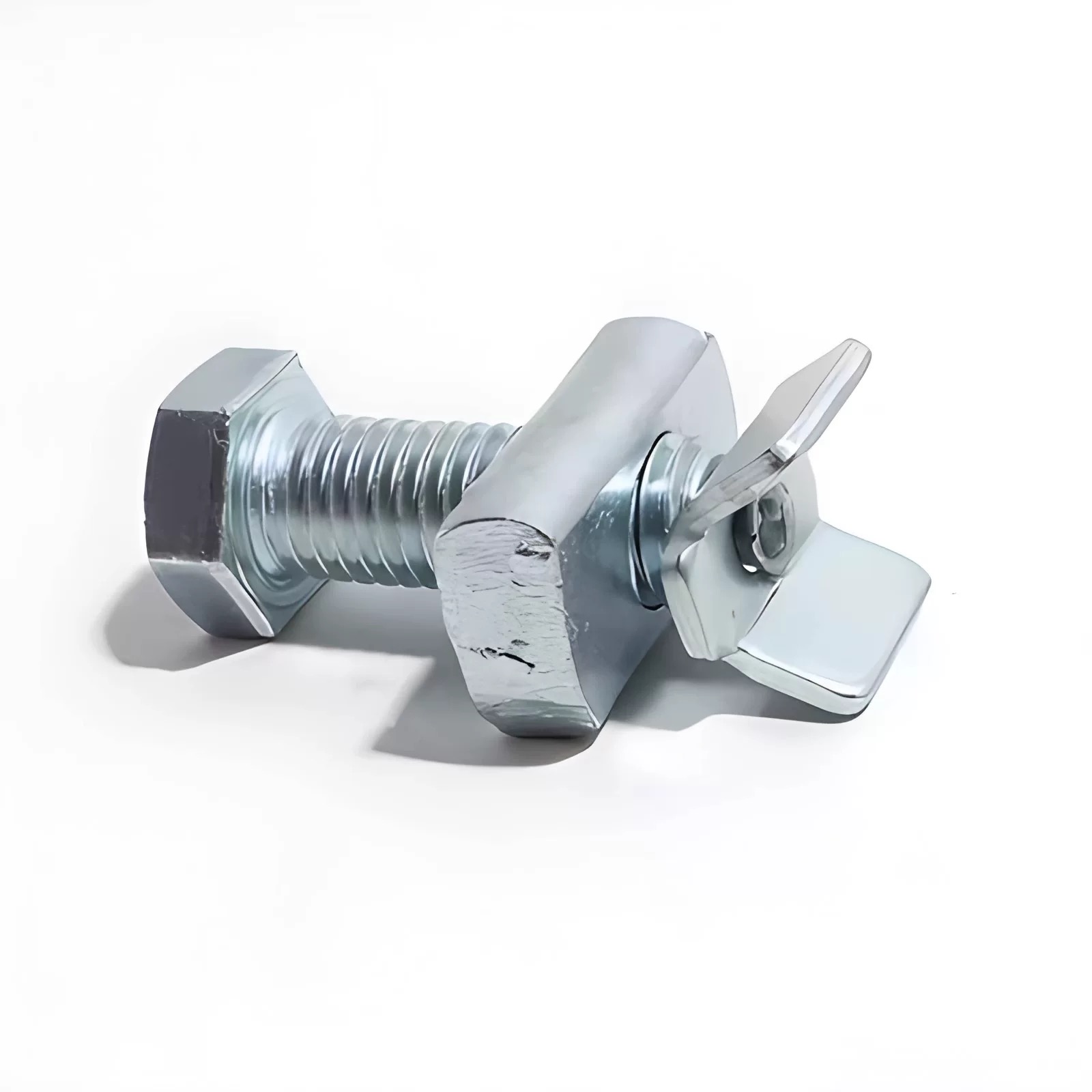

3. Fastener Parts: Spring channel nuts, rod couplers, connecting nutsQuick lock on C-channel without welding, splice threaded suspension rods.

4. Anchors: Expansion bolts, chemical anchor boltsFix seismic supports to concrete walls & slabs.

III. Production & Quality

Manufactured via CNC punching, laser cutting, bending and deburring; carbon steel with anti-corrosion coating, stainless steel with polishing. Precise tolerance, compatible with standard GB C-channel seismic systems.

IV. Core Functions

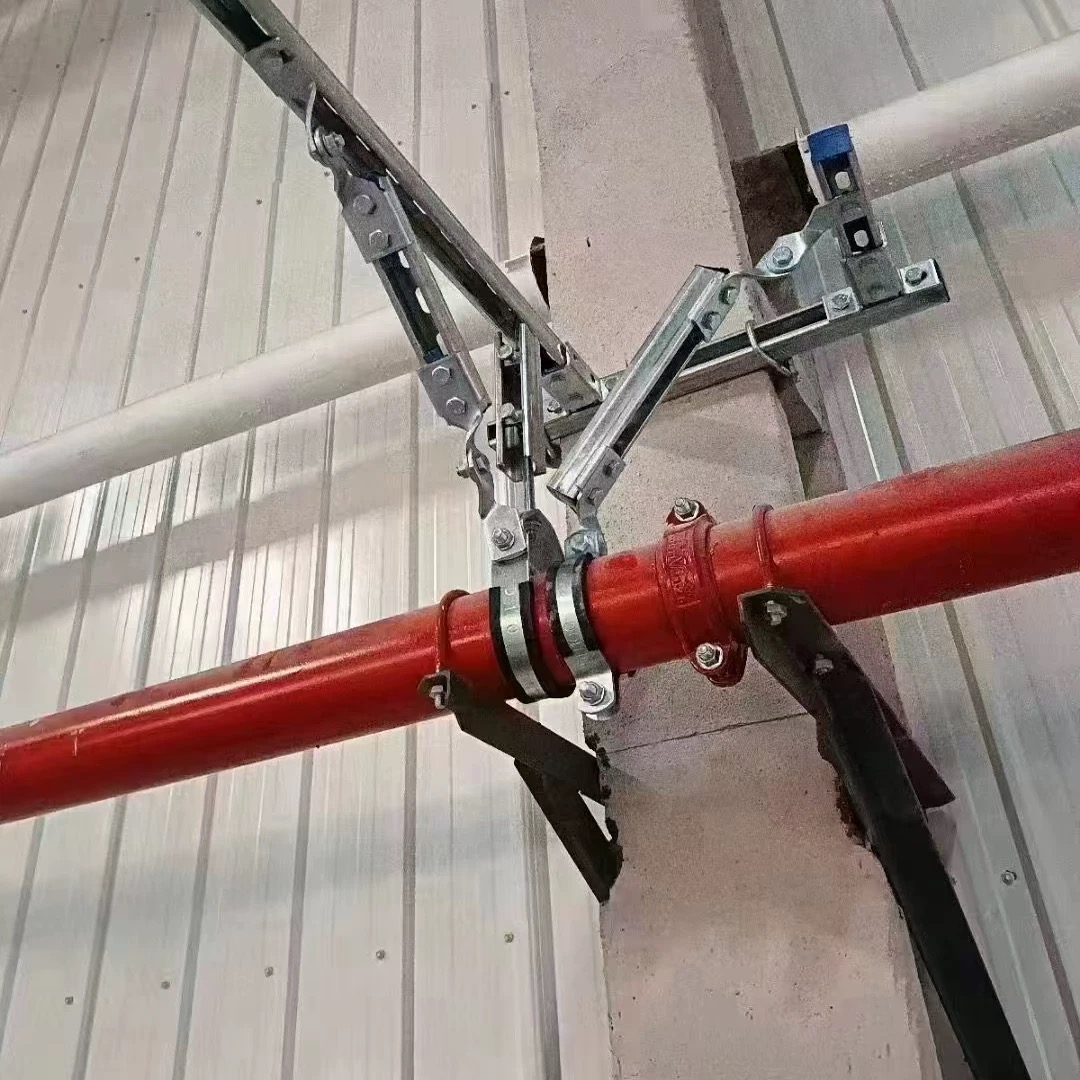

Restrict horizontal & longitudinal pipeline displacement during earthquakes, avoid pipe falling & secondary hazards. Mandatory for high-rises, hospitals, subways, pipe galleries and factories. All fittings assemble into complete lateral & longitudinal seismic bracing sets.

V. Key Advantages

1. Modular design, no on-site welding, fast installation & shorter construction period

2. Multiple anti-corrosion options for all indoor/underground/coastal environments

3. Full one-stop supporting parts matching seismic C-channels & threaded rods

4. Stable mechanical performance complying with GB 50981 and international seismic standards

5. Custom non-standard parts per customer drawings

VI. Application Scenarios

High-rise commercial buildings, hospitals, schools, underground garages, integrated pipe galleries, industrial plants, data centers, subway transit systems.Applicable media: Fire pipes, water supply & drainage pipes, ventilation ducts, cable trays, bus ducts.
